ANGLE
PLATES |
|
|
||
|
We are the Manufacturers & exporters of a wide variety of "Angle Plates". Some of the standard Angle Plates are: |
||
| Art No 151 |

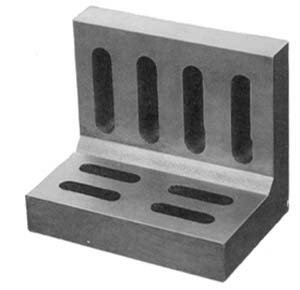

Angle Plate Slotted (open-end & webbed) |
|
 |
|
|
| Art No 152 |
Angle
Plate Stepped |
|
|
|
||
| Art No 153 |
Solid Angle
Plate |
|
|
|
||
| Art No 154 |
Sine
Bars |
|
|
|
||
Article
No :- 151 |
Article
No :- 152 |
|
||||||||||||||||||||||||||||||||||||||
Article No 151 |
Article
No 152 |
| Cat No. Webbed End | Cat No.. Open End |
Length |
Width (First Angle) |
Height (Second Angle) |
|||
| Inch |
mm |
Inch |
mm |
Inch |
mm |
||
| APW-251 |
APO-260 |
3 |
75 |
2-1/2 |
63 |
2 |
50 |
| APW-252 |
APO-261 |
3-1/2 |
90 |
3 |
75 |
2-1/2 |
63 |
| APW-253 |
APO-262 |
4-1/2 |
115 |
3-1/2 |
90 |
3 |
75 |
| APW-254 |
APO-263 |
6 |
150 |
5 |
125 |
4-1/2 |
115 |
| APW-255 |
APO-264 |
7 |
175 |
5-1/2 |
140 |
4-1/2 |
115 |
| APW-256 |
APO-265 |
8 |
200 |
6 |
150 |
5 |
125 |
| APW-257 |
APO-266 |
9 |
225 |
7 |
175 |
6 |
150 |
| APW-258 |
APO-267 |
10 |
250 |
8 |
200 |
6 |
150 |
| APW-259 |
APO-268 |
12 |
300 |
9 |
225 |
8 |
200 |
|
|
Article
No:- 153 |
||
 |
||
|
|
Made from special tool steel | |
|
|
Completely hardened and ground | |
|
|
Tapped holes for clamping jobs in any position Stepped design | |
|
|
Flatness & square ness within 0.002" per 6" | |
Article
No:- 153 |
||
| Cat
No. |
Size |
|
| inch |
mm |
|
|
APS-269 |
3X3X3 |
75X75X75 |
|
APS-270 |
4X4X4 |
100X100X100 |
|
|
|
|
|
Article No:- 154 |
|
Article No:- 154 |
|
|
|
Made from High quality Casting. |
|
|
Castings are properly seasoned to avoid distortion |
|
|
Precision ground sides and Ends |
|
|
Flatness and Square ness within .002" Per 6" for Machined finish and .001" per 6" for Ground finish. |
|
Article
No:- 154 |
| Cat
No. |
Size |
|
Inch
|
mm
|
|
|
APS-271 |
1x1x1x1 |
25x25x25 |
|
APS-272 |
2 x 2 x 2 |
50 x 50 x 50 |
|
APS-273 |
3 x 3 x 3 |
75 x 75 x 75 |
|
APS-274 |
4 x 4 x 4 |
100 x 100 x100 |
|
APS-275 |
5 x 5 x 5 |
125 x 125 x125 |
|
APS-276 |
6 x 6 x 6 |
150 x 150 x150 |
|
APS-27 |
8 x 8 x 8 |
200 x 200 x200 |
|
APS-278 |
10 x 10 x 10 |
250 x 250 x250 |
|
APS-279 |
12 x 12 x 12 |
300 x 300 x300 |
|
|
|
|
Article
No:- 155 |
|
|
|
Body and rolls made of Hardened and Precise ground Tool Steel. |
|
|
Perfect tool for angular inspection and measurement |
|
|
Top parallel to bottom of rolls ± .0004". |
|
|
Distance between centre of rolls ± .0004" |
|
Article
No:- 155 |
| Cat No |
Model |
width |
Distance Between Rollers |
| SB-280 |
00 |
15/16” |
5” |
| SB-281 |
00 |
1” |
10” |
| SB-282 |
11 |
1” |
2-1/2” |
| SB-283 |
11 |
1” |
5” |
| SB-284 |
22 |
30 mm |
100 mm |
| SB-285 |
22 |
30 mm |
200 mm |
| SB-286 |
33 |
7/32” |
3” |
|
|
|
|
