MAGNETIC
TOOLS |
||
|
We are the Manufacturers & exporters of a wide variety of "Magnetic Tools". Some of the standard Magnetic Tools available are: |
||
Art
221 |
MAGNETIC BASE (MEDIUM)
Fine
Adjustment |
|
 |
||
Art
222 |
MAGNETIC
BASE (HIGH POWER) |
|
|
|
||
Art
223 |
MAGNETIC
BASE (FLEXIBLE ARM) |
|
|
|
||
Art
224 |
MINI
MAGNET STAND |
|
|
|
||
|
Art
225 |
||
|
|
||
Art
226 |
MAGNETIC
QUICK HOLD FASTS |
|
|
|
||
Art
227 |
MAGNETIC
LINK |
|
|
|
||
Art
228 |
MAGNETS
POT |
|
|
|
||
Art
229 |
MAGNET
POT SHALLOW |
|
|
|
||
Art
230 |
MAGNETIC
CHUCKS (ROUND) |
|
|
|
||
Art
231 |
MAGNETIC
CHUCKS (RECTANGULAR) |
|
|
|
||
Art
232 |
MAGNETIC
V-BLOCK |
|
|
|
||
MAGNETIC
BASE (MEDIUM) Fine Adjustment |
||
|
Article No :-221 |
||
|
|
Especially designed to use with Dial gauges to work on surface plates and Machine Tables. |
|
With two magnetic phases and fine adjustment with universal clamp. | |
|
Magnetic Pull 25 Kg. | |
| Article No :-221 |
| Cat
No. |
Overall
Height |
Base
Dimension L / W / H |
||
| Inch |
mm |
Inch |
mm |
|
| MBM-551 |
9-1/4 |
235 |
1-7/8 x 1-3/4 x 2 |
48
x 45 x 50 |
MAGNETIC
BASE (HIGH POWER) Universal |
||
Article
No :-222 |
||
|
|
|
With two magnetic phases heavy duty with universal clamp. |
|
|
Smooth easy ON/OFF switch. | |
|
|
Horizontal or Vertical positioning capability. | |
|
|
V-grooved base for mounting. | |
|
|
Magnetic Pull approx. 50 Kg. | |
|
Article No :-222 |
Cat
No. |
Description
|
Overall
Height |
Base
Dimension L / W / H |
||
|
Inch |
mm |
Inch |
mm |
||
| MBHP-552 |
Without
fine Adjustment |
9-1/2
|
240
|
2-1/2
x 1-7/8 x 2-1/8 |
63
x 48 x 55 |
| MBHP-553 |
Base
only |
|
|
2-1/2
x 1-7/8 x 2-1/8 |
63
x 48 x 55 |
MAGNETIC
BASE (FLEXIBLE ARM) Elbow Joint |
||
Article
No :-223 |
||
 |
|
Magnetic Base elbow joint flexible arm with two magnetic phase. |
|
|
Includes ON/OFF Switch and Central locking knob to tighten both arms | |
|
|
Dial Gage Holder includes fine adjustment. | |
|
|
Magnetic Pull approx 50 Kg. | |
Article
No :-223 |
| Cat
No. |
Maximum
Height |
Base
Dimension L / W /H |
||
|
Inch
|
mm
|
Inch
|
mm
|
|
|
MBFA-554
|
14
|
355
|
2-1/2
x 1-7/8 x 2-1/8 |
63
x 48 x 55 |

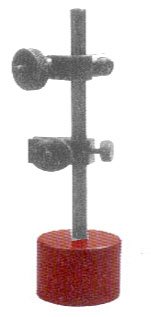

Article
No :-224 |
||
 |
||
|
|
With one magnetic phase light duty with standard clamp | |
|
|
Compact and small Universal Permanent Magnetic Stand | |
|
|
Includes Disc on bottom for free magnet when not in use | |
Article
No :-224 |
| Cat No | Base Diameter | Base Height | Magnetic Pull Box | Model Type | ||
| Inch | mm | Inch | mm | |||
| MMS - 555 | 1.1/8 | 28 | 1 | 25 | 5 kg | Without Fine Fitting |
| MMS - 556 | 1.1/8 | 28 | 1 | 25 | 5 kg | With Fine Fitting |
| MMS - 557 | 1.3/8 | 35 | 1.3/16 | 30 | 8 kg | With Fine Fitting |

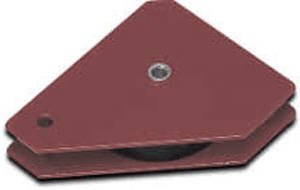

Article
No :-225 |
||
 |
||
|
|
Magnetic clamp for fast accurate holding. | |
|
|
Well suited for fast and accurate holding of Ferrous metals for welding and Assembly. | |
|
|
Compact Design with Powerful Magnetic. | |
Article
No :-225 |
|
Cat
No. |
Size |
Angles |
|
|
Inch |
mm |
||
| MQC-558 |
4-3/8 x 3-3/4 |
110 x 95 |
30°, 90° and 135° |
| MQC-559 |
4 x 2-5/8 |
100 x 65 |
30°, 45°, 60°, 75° and 90° |
Article
No :-226 |
||
 |
||
|
|
Positive gripping pot magnets supplied with screw down release handle. | |
|
|
Can be used singly or in multiples for making welding or other jigs. | |
Article
No :-226 |
| Cat
No |
Diameter
|
Magnetic
Pull |
||
| Inch |
mm |
lbs |
kgs |
|
MHF-600 |
1-3/4 |
44 |
45 |
20 |
MHF-601 |
2-1/8 |
54 |
70 |
30 |
MHF-602 |
2-3/4 |
70 |
110 |
50 |
Article
No :-227 |
||
 |
||
|
|
Two Magnetic units
jointed by non-magnetic steel straps holds at many different angles by adjustment and locking of wing nut. |
|
|
|
Widely used for Holding and Welding. | |
|
|
Compact in size for holding work in confined spaces. | |
|
|
Each Block is 2" x 1" x 1" (50 mm x 25 mm x 25 mm) | |
Article
No :-228 |
||
 |
||
|
|
Has unlimited applications such as magnetic fasteners, displays, holding maps etc. | |
|
|
Has tapped hole of 1/4" - 20 | |
|
|
Comes with Plated keepers | |
Article
No :-228 |
Art No :- 232
