PUNCHES



We are the Manufacturers & exporters of a wide variety of "Punches".

Some of the standard Punches are:
Products Of Any Type/Dimension Can Be Manufactured As Per Requirements; Customers’ Designs And Logos Are Welcome.

Art  501     AUTOMATIC CENTRE PUNCH - LIGHT DUTY (BRASS & STEEL)
Art  502     CENTER PUNCHES - SQUARE HEAD

Art  503     CENTER PUNCHES - ROUND HEAD
Art  504   NAIL PUNCHES - SQUARE HEAD
Art  505     NAIL PUNCHES - ROUND HEAD
Art  506     DRIVE PIN PUNCHES - 8"(200MM)LONG
Art  507     DRIVE PIN PUNCHES - 4"(100MM)LONG
Art  508     BRASS PUNCHES
Art  509     TRANSFER PUNCHES

Art  510     HOLLOW (LEATHER) PUNCHES/BELL PUNCHES
Art  511     STEEL STAMPS - LETTER & NUMBERS

Art  512

    HOLLOW (INTERCHANGEABLE HEAD) PUNCHES

Art  513     NUMBER PUNCH & FIGURE PUNCH

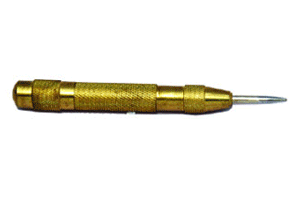

AUTOMATIC CENTRE PUNCH - LIGHT DUTY (BRASS & STEEL)

Article No   501

Fully Hardened and Ground Punch Point.

Heavy Knurled Body for definite grip and easy handling.

No Hammer is required for operating punch

Force of Impact can be regulated by rotating top Knurled cap.

5” (125 mm) long with Body Diameter of  5/8” (16 mm)

Article No   501
Cat No. Type
ACPLD-1801 Automatic Center Punch (Brass Body)
ACPLD-1802 Automatic Center Punch (Steel Body)

TOP







CENTER PUNCHES (SQUARE HEAD)

Article No   502


Made of Tool Steel, Hardened and Tempered

Points are Machined and Ground

Heavy Knurled Body for better Grip

Available individually and in Sets




Article No   502
Cat No. Diameter at top of Taper Length Square size
Inch mm Inch mm Inch mm

CPSH-1803

1/16

1.6

4

100

3/8

9.5

CPSH-1804

5/64

2.0

4

100

3/8

9.5

CPSH-1805

3/32

2.5

4

100

3/8

9.5

CPSH-1806

9/64

3.6

4

100

3/8

9.5

CPSH-1807

5/32

4.0

4

100

3/8

9.5

CPSH-1808

Set of Five above sizes of Center Punches in Pouch.

TOP

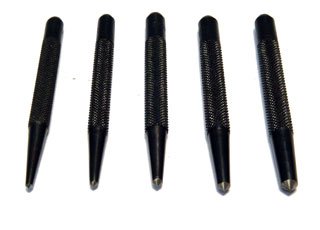

CENTER PUNCHES (ROUND HEAD)

Article No   503

Made of Tool steel, Hardened and Tempered. Points are Machined and Ground

Heavy Knurled Body for better grip

Shiny Black finish

Available in individual sizes and alsoin a set of five in attractive plastic pouch



Article No   503
Cat No.

Diameter at Top of Taper

Length

Inch mm Inch mm

CPRH-1809

1/16

1.6

3

75

CPRH-1810

5/64

2.0

4

100

CPRH-1811

3/32

2.5

4

100

CPRH-1812

9/64

3.6

4

100

CPRH-1813

5/32

4.0

4

100

CPRH-1814

(1.6 mm), 5/64” (2.0 mm), 3/32” (2.4 mm), 9/64” (3.6 mm) and 5/32” (4.0 mm)

TOP

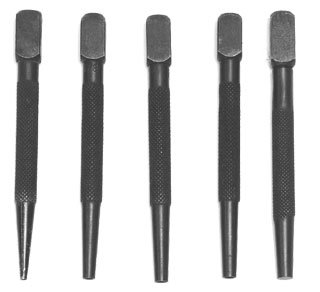

NAIL PUNCHES (SQUARE HEAD)

Article No   504

Made of Tool Steel, Hardened and Tempered

Heavy Knurled Body for better grip

Shiny Black Finish

Handy Tool for Carpenters, Model Makers, Machinists etc.

Available in individual sizes and also in a set of Five in attractive Plastic Pouch



Article No   504
Cat No. Size of Tip Length Square size
Inch mm Inch mm Inch mm
NPSH-1815 1/16

1.6

4

100

3/8

9.5

NPSH-1816

 3/32

2.5

4

100

3/8

9.5

NPSH-1817

 1/8

3.2

4

100

3/8

9.5

NPSH-1818

 5/32

4.0

4

100

3/8

9.5

NPSH-1819

 3/16

4.8

4

100

3/8

9.5

NPSH-1820

 Set of above Five Punches in Pouch.

TOP







NAIL PUNCHES (ROUND HEAD)

Article No   505


Hardened and Tempered Tool Steel for long life

Shiny Black oxidized finish

Heavy Knurled Body for better Grip.

Very Handy Tool for Carpenters, Model Makers, Machinists, Pattern Makers, etc


Article No   505
Cat No. Size of Tip Length
Inch mm Inch mm
NPRH-1821 1/16

1.6

4

100
NPRH-1822 3/32

2.5

4

100
NPRH-1823 1/8

3.2

4

100
NPRH-1824 5/32

4.0

4

100
NPRH-1825 3/16

4.8

4

100
NPRH-1826 Set of 5 above mentioned Nail Punches in a attractive Plastic Pouch

TOP

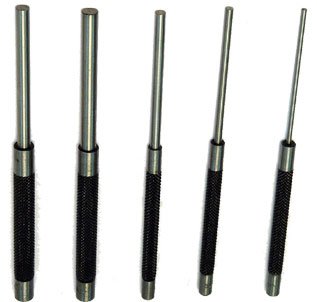

DRIVE PIN PUNCHES - 8"(200MM)LONG

Article No   506

Tip Hardened to HRC 45-52


Punch Section is Centerless ground to check runout.


Heavy knurled body with shiny black oxidized finish

Body Length 4-1/2”  and Pin Length 3-1/2”






Article No   506
Cat No.

Punch Diameter

Inch

mm
LDP-1827 1/8 3.0
LDP-1828 3/16 5.0
LDP-1829 1/4 6.0
LDP-1830 5/16 8.0
LDP-1831 3/8 10.0
LDP-1832

5pc set in inch 1/8" - 3/8" (3mm to 10mm). Available in plastic pouch and bristle packing.



TOP

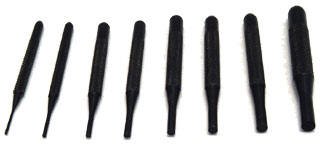

DRIVE PIN PUNCHES - 4"(100MM)LONG

Article No   507
Single piece made from Hardened and Tempered Tool steel.


Tip Hardened to 45-52 HRC.



Striking head and front taper centerless ground.


Heavy Knurled finger grip

Shiny black oxidized finish.


Available in individual sizes and also in set of 4 & 8 attractive plastic case.


Article No   507
Cat No.

Punch Diameter

Inch

mm

PPSD-1833

1/16

1.6

PPSD-1834

3/32

2.4

PPSD-1835

1/8

3.2

PPSD-1836

5/32

4.0

PPSD-1837

3/16

4.8

PPSD-1838

7/32

5.5

PPSD-1839

1/4

6.4

PPSD-1840

5/16

8.0

PPSD-1841 4 pc Set of Drive Pin Punches 1/16” (1.6 mm), 3/32” (2.4 mm), 1/8” (3.2 mm) and 5/32”(4.00 mm), in a Plastic Pouch.
PPSD-1842 4 pc Set of Drive Pin Punches 3/16” (4.8 mm), 7/32” (5.5 mm), 1/4” (6.4 mm) and 5/16”
PPSD-1843 8 PC Set of Drive Pin Punches 1/16” (1.6 mm), 3/32” (2.4 mm), 1/8” (3.2 mm), 5/32” (4.0 mm), 3/16” (4.8 mm), 7/32” (5.5 mm),1/4” (6.4 mm) and 5/16” (8.0 mm) in a Plastic Pouch.

TOP

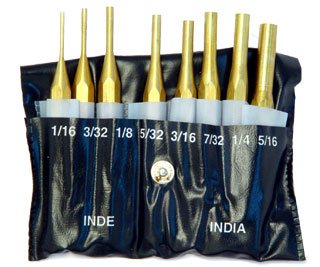

BRASS PUNCHES (NON SPARKING)

Article No   508

Made from high quality Brass Hexagonal Stock

Ideal Punches for working in no spark situation

Punch Diameters are undersized app. .005” (0.127 mm)

3-1/2” (90 mm) Long

Available in individual sizes and also in a set of 8 Punches in attractive Plastic Pouch




Article No   508
Cat No.

Size of Tip

Inch mm
BP-1844 1/16

1.5
BP-1845 3/32

2.5

BP-1846 1/8

3.0
BP-1847 5/32

4.0

BP-1848 3/16

5.0
BP-1849 7/32

5.5

BP-1850 1/4

6.0

BP-1851

5/16

8.0

BP-1852

Set of above 8 Brass Punches

TOP







TRANSFER PUNCHES

Article No   509


Heat treated and tempered for long life

Set consists of 28 Punches sizes 3/32” to 1/2” by 64ths plus handy 17/32” size. Length 4-7/8”.

1/2" to 1" length 5-1/4"

Diameter .0025 under size to facilitate use

Black Oxide Finish

Comes with aluminum indexed Stand

Ideal Punch set for transferring of threaded, drilled and tapped holes. Very popular with Tool  Makers and Machinists


Article No   509

Cat No.

Description

TP-1853 28 PCs Transfer Punch Set. 3/32”  to 1/2"
TP-1854 28 PCs Transfer Punch Set. 1/2"  to 1"

TOP

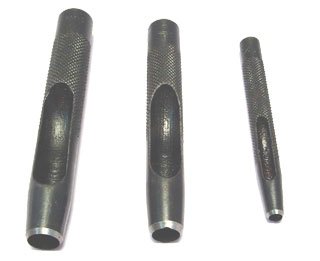

HOLLOW (LEATHER) PUNCHES/BELL PUNCHES

Article No   510

Excellent tool to punch Accurate Hole in gasket Material, light gauge sheet metal, Vinyl, Plastic, Leather, and more

Made from hardened & tempered high Carbon Steel

Precision Ground edges facilitates easy cutting.

Inside taper for clearance

Sets are in an attractive Plastic Pouch

Also available in individual sizes


Article No   510
Cat No.

Range

No. of PCs

HLP-1855 3/16”, 1/4”, 5/16”, 3/8”, 7/16”and ½”

6

HLP-1856 3/32”, 1/8”, 5/32”, 3/16”,1/4”,5/16”, 3/8”, 7/16” and 1/2”

9

HLP-1857 2mm,, 3mm, 4mm, 5mm, 6mm, 7mm and 8 mm

7

HLP-1858

 2mm,, 3mm, 4mm, 5mm, 6mm, 7mm, 8mm, 9mm and 10 mm

9

TOP







MULTIPURPOSE PUNCHES

Article No   511


Made up from carbon steel.







Article No   511
Cat No.

Range

MP-1859 One pc each   leather punch 1/16", 1/8", 5/32", 3/16", 1/4",  1Pc Center Punch and 1Pc Nail Punch

TOP

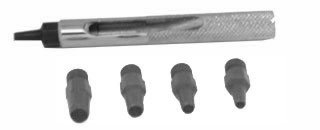

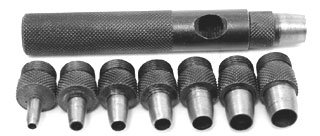

HOLLOW (INTERCHANGEABLE HEAD) PUNCHES

Article No   512


Made up from carbon steel

Used in leather plastic and thin steel sheets





Article No   512
Cat No.

Range

No. of PCs

HIP-1860 2mm,, 3mm, 4mm, 5mm, 6mm,  8mm, 9mm and 10 mm

8
HIP-1861 3/32, 1/8, 5/32, 3/16, 7/32,1/4,   5/16,  3/8 8

TOP









<

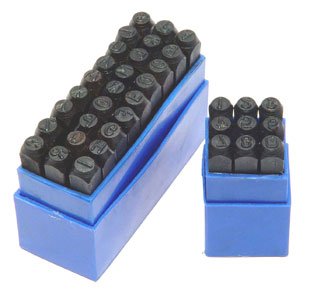

NUMBER PUNCH & FIGURE PUNCH

Article No   513

Used in leather plastic and thin steel sheets
