Tools Holders

Products Of Any Type/Dimension Can Be Manufactured As Per Requirements; Customers’ Designs And Logos Are Welcome.

We are the Manufacturers & exporters of a wide variety of "Tool Holders".

Some of the standard Tool Holders are:

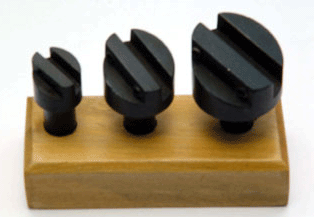

Art 451     FLY CUTTER HOLDER SET


Art 452     FLY CUTTER HOLDER (R-8)

Art 453     TURNING TOOL HOLDER (AMERICAN TYPE)

Art 454     TURNING TOOL HOLDER (ENGLISH TYPE)
Art 455     TURNING TOOL HOLDER (ADJUSTABLE)

Art 456     KNURLING TOOL HOLDER

Art 457     KNURL SPARES

Art 458     BORING BAR (DOUBLE ENDED)

Art 459     BORING BAR WITH HOLDER

Art 460    INSERTED EXTERNAL TOOL HOLDER (LEVER LOCK)

Art 461     INSERTED EXTERNAL TOOL HOLDER (SCREW CLAMP)

Art 462

    INSERTED BORING  TOOL  HOLDER  (Screw  On)


Art 463

    INSERTED EXTERNAL  TOOL  HOLDER  (Top  Clamp)


Art 464

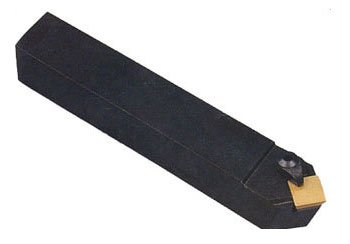

    EXTERNAL  TOOL  HOLDER  (Top  Clamp)












Article  No:- 451




Counterbalanced to get smoother finishes.


Made of Hardened Steel.


Shiny Black Finish.

Sets supplied on wooden Stand.





Art No:- 451

Cat No.
Head Dia
Shank Size
Tool BIT Size
Inch
mm
Inch
mm
Inch
mm
FCHS-1601
3/4
19
1/2
12.7
3/16
4.5
FCHS-1602
1-1/8
28
1/2
12.7
1/4
6.0
FCHS-1603
1-1/2
38
1/2
12.7
5/16
8
FCHS-1604
1-1/2
38
3/4
19
5/16
8
FCHS-1605
2
50.8
3/4
19
5/16
8
FCHS-1606
2-1/2
63.5
3/4
19
5/16
8


TOP

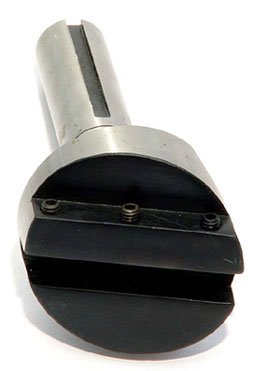

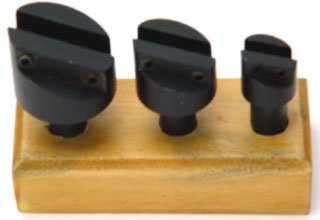

FLY CUTTER TOOL HOLDER (R-8)

Art No :- 452


Counterbalanced to get smoother finishes
Made of Hardened Steel






Art No :-452

Cat No. Head Dia

Suitable for Tool BIT Size

Inch mm Inch mm
FCR-8-1607 2-1/2 63.5 5/16 8
FCR-8-1608 2-1/2 63.5 3/8 9.5




TOP

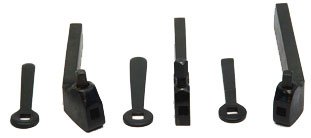

Article No:- 453

Accurately Machined

Heat Treated and Hardened

Provided with one Wrench.

Available in Straight, Left and Right Hand Shanks




Article No:- 453

Cat NO.
Size of Sq. Shank
Style
TTHAT-1609
3/8"
TE6
TTHAT-1610
3/8"
TBL6
TTHAT-1611
3/8"
TAL6
TTHAT-1612
3/8"
TBR6
TTHAT-1613
3/8"
TAR6
TTHAT-1614
1/2"
TE8
TTHAT-1615
1/2"
TBL8
TTHAT-1616
1/2"
TAL8
TTHAT-1617
1/2"
TBR8
TTHAT-1618
1/2"
TAR8


TOP









TURNING TOOL HOLDER (ENGLISH TYPE)

Article No:- 454


Heat Treated and Hardened.
Suitable for use on English Type annd European Lathes
Supplied with Wrench.
Available in Straight, Left and Right Hand Shanks


Article No:- 454

Straight Shank Cat No.       Left Hand        Cat No. Right Hand  Cat. No Holder Size IN MM Square Tool Bit Size
TTHET-1619 TTHET-1626 TTHET-1633

12 x 16 x 100

1/8”

TTHET-1620 TTHET-1627 TTHET-1634

14 x 18 x 145

3/16”

TTHET-1621 TTHET-1628 TTHET-1635

16 x 20 x 190

1/4”

TTHET-1622 TTHET-1629 TTHET-1636

18 x 22 x 215

5/16”

TTHET-1623 TTHET-1630 TTHET-1637

20 x 25 x 235

3/8”

TTHET-1624 TTHET-1631 TTHET-1638

22 x 28 x 260

7/16”

TTHET-1625 TTHET-1632 TTHET-1639

25 x 30 x 275

1/2”




TOP







TURNING TOOL HOLDER ADJUSTABLE

Article No:- 455


Machined Tool Holders

Supplied without Tool Bits.


Article No:- 455

Straight Cat No.

Capacity

Overall Length

Inch mm Inch mm
THAJ-1640 3/16 to 1/4

5  to 6

5

127

THAJ-1641

1/4 to 5/16

6  to 8

5-1/2

140

THAJ-1642

5/16 to 3/8

8  to 10

6

152

THAJ-1643

3/8 to 1/2

10  to 12

8

203



TOP





Article No:- 456



Machined ground steel in Shiny black finish.
High Speed steel Knurls. Six Knurl Tool is provided with one pair each of fine medium and coarse Knurls.

Two Knurl Tool is provided with medium knurls, but other Knurls can also be provided if required.

Replacement Knurls are offered as a complete spare set for Knurling tools

Article No:- 456

Cat No. Tool Holder
No. of Knurls
No. of Knurls
Inch
mm
KTH-1644
2
5/16x3/4x5
8x19x127
KTH-1645
2
3/8x7/8x5-1/2
9.5x22x140
KTH-1646
2
1/2x1-1/8x6-1/2
12.7x28x165
KTH-1647
2
5/8x1-3/8x7-1/2
16x35x190
KTH-1648
6
5/16x3/4x5
8x19x127
KTH-1649
6
3/8x7/8x5-1/2
9.5x22x140
KTH-1650
6
1/2x1-1/8x6-1/2
12.7x28x165
KTH-1651
6
5/8x1-3/8x7-1/2
16x35x190
KTH-1652
6
1/2x7/8x6-1/2
12.7x22x165
KTH-1653
2
1/2x1/2x4-1/2
12.7x12.7x115
KTH-1654
2
1/2x1/2x5
12.7x12.7x127
KTH-1655
1
1/2x1/2x4
12.7x12.7x100
KTH-1656
1
3/4x3/4x5
19x19x127




TOP

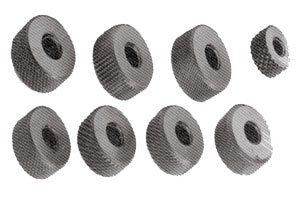

KNURLS (SPARES)

Article No:- 457











Article No:- 457

Art. Nr183

Dimensions of Knurls

Diamond Pattern

Straight Line Pattern

Diameter

Full Face width

Hole

Pitch

KRS-1657 KRS-1166 5/8” 5/16” 7/32” 14
KRS-1658 KRS-1167 5/8” 5/16” 7/32” 21
KRS-1659 KRS-1168 5/8” 5/16” 7/32” 33
KRS-1660 KRS-1169 3/4” 3/8” 1/4” 14
KRS-1661 KRS-1170 3/4” 3/8” 1/4” 21
KRS-1662 KRS-1171 3/4” 3/8” 1/4” 33
KRS-1663 KRS-1172 1” 3/8” 5/16” 14
KRS-1664 KRS-1173 1” 3/8” 5/16” 21
KRS-1665 KRS-1174 1” 3/8” 5/16” 33


TOP

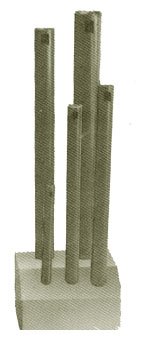

BORING BAR (DOUBLE ENDED)

Article No:- 458


Double ended one piece boring bar have 90 & 45 degree Sq ends.
Boring  bar are also supplied in sets.






Article No:- 458

Cat No

Diameter of Bar

Overall Length

Bit Size

BBDE-1675

1/4”

5”

5/32” Round

BBDE-1676

5/16”

5”

3/16” Round

BBDE-1677

3/8”

6”

3/16” Round

BBDE-1678

1/2”

6”

3/16” Square

BBDE-1679

1/2”

9”

3/16” Square

BBDE-1680

9/16”

6-3/4”

3/16” Square

BBDE-1681

9/16”

6-3/4”

1/4” Square

BBDE-1682

9/16”

9”

3/16” Square

BBDE-1683

5/8”

10”

1/4” Square

BBDE-1684

3/4”

8”

1/4” Square

BBDE-1685

3/4”

12”

1/4” Square

BBDE-1686

15/16”

9”

5/16” Square

BBDE-1687

1”

12”

1/4” Square

BBDE-1688

1”

12”

5/16” Square

BBDE-1689

1”

12”

3/8” Square

BBDE-1690

1-1/8”

14”

7/16” Square

BBDE-1691

1-1/4”

16”

1/2” Square

BBDE-1692

1-1/2”

18”

1/2” Square



TOP

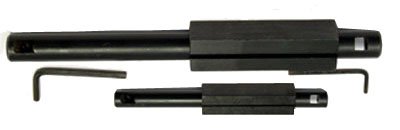

BORING BARS WITH HOLDERS

Article No:- 459



    Made from Tool Steel Double Ended Boring
       Bars and holder comes complete with Screws
      and Allen Keys.



    Black Shining Finish.



Article No:- 459

Cat No.

Bar Size
HOLDER SIZE
Suitable For Square Bit Size
Dia
Length
Length
Square
Square Bit Size
BBH-1693
3/8”
4-1/2”
2-1/4”
2-1/4”
1/8"
BBH-1694
7/16”
5-1/4”
2-1/2”
1/2”
3/16"
BBH-1695
9/16”
6-3/4”
3”
5/8"
1/4"
BBH-1696
3/4”
9-1/4”
3-3/4”
7/8”
5/16"
BBH-1697
7/8”
11-1/2”
4-1/2”
1-1/4”
3/8"
BBH-1698
1-1/8”
12-3/4”
4-1/2”
1-3/8”
7/16”
BBH-1699
1-3/16”
13-3/4”
5”
1-5/8”
1/2"

TOP

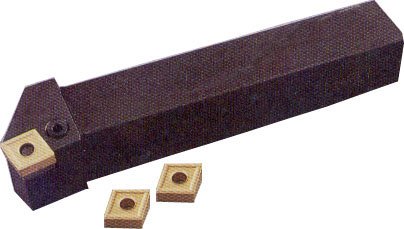

EXTERNAL  TOOL  HOLDER  (Lever  Lock)

Article No:- 460



Article No:- 460

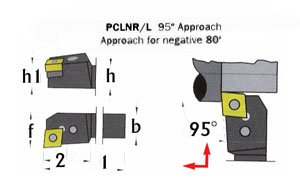

Cat No DIMENSION (mm)
Designation h1=h1 b 1 2 f
ETHLL-1700 PCLLR-L 16 16 100 26 20
ETHLL-1701 PCLLR-L 20 20 125 28 25
ETHLL-1702 PCLLR-L 25 25 150 28 32
ETHLL-1703 PCLLR-L 25 25 150 34 32
ETHLL-1704 PCLLR-L 25 25 150 42 32
ETHLL-1705 PCLLR-L 32 25 170 28 32
ETHLL-1706 PCLLR-L 32 25 170 34 32
ETHLL-1707 PCLLR-L 32 32 170 42 40










TOP

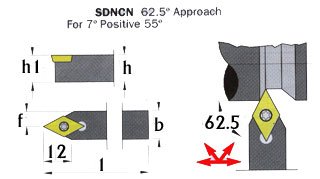

EXTERNAL  TOOL  HOLDER  (Screw  Clamp)

Article No:- 461













Article No:- 461

Cat No Designation Dimension (mm)
h=h1 b 1 2 f
ETHSC-1708 SDNCN - 8 8 60 16 4
ETHSC-1709 SDNCN - 10 10 70 16 5
ETHSC-1710 SDNCN - 12 12 80 18 6
ETHSC-1711 SDNCN - 16 16 100 22 8
ETHSC-1712 SDNCN - 20 20 125 22 10
ETHSC-1713 SDNCN - 25 25 150 22 12.5





TOP

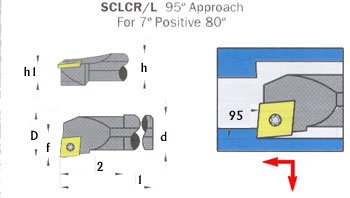

BORING  TOOL  HOLDER  (Screw  On)

Article No:- 462











Article No:- 462

Cat No Designation

Dimension (mm)

dg h h1 1 2 f
BTHSO-1709 SCLCR-L 8 7 3.5 125 16 5
BTHSO-1710 SCLCR-L 10 9 4.5 150 25 7
BTHSO-1711 SCLCR-L 12 11 5.5 180 30 9
BTHSO-1712 SCLCR-L 16 15 7.5 200 30 11
BTHSO-1713 SCLCR-L 20 18 9 250 35 13
BTHSO-1714 SCLCR-L 25 23 11.5 300 40 17




TOP

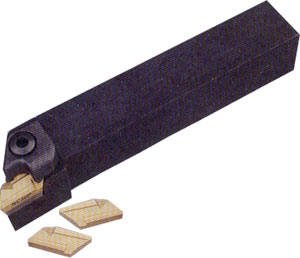

EXTERNAL  TOOL  HOLDER  (Top  Clamp)

Article No:- 463






Article No:- 463

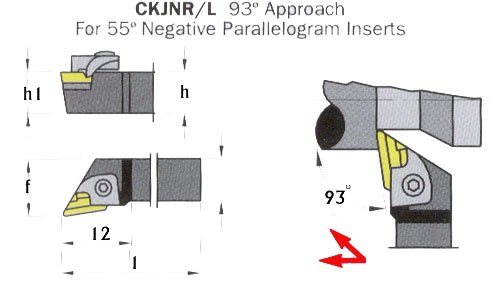

Cat No Designation Dimensions (mm)
h=h1 b 1 2 f
ETHTC-1715 CKJNR-L 25 25 150 34 32
ETHTC-1716 CKJNR-L 32 25 170 34 32

TOP






EXTERNAL  TOOL  HOLDER  (Top  Clamp)

Article No:- 464



Article No:- 464

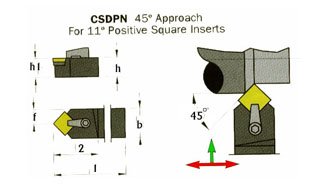

Cat No Designation Dimensions (mm)
h=h1 b 1 2 f
ETHTC-1717 CSDPN-L 16 16 100 22 8.0
ETHTC-1718 CSDPN-L 20 20 125 28 10.0
ETHTC-1719 CSDPN-L 25 25 150 28 12.5
